Version: 3.7

Payment Gateway

A payment gateway facilitates secure transfer of payment details between customers and merchants, ensuring smooth and safe online transactions by linking various payment methods (e.g., debit/credit cards, digital wallets) with merchant websites or applications.

Configure payment gateway​

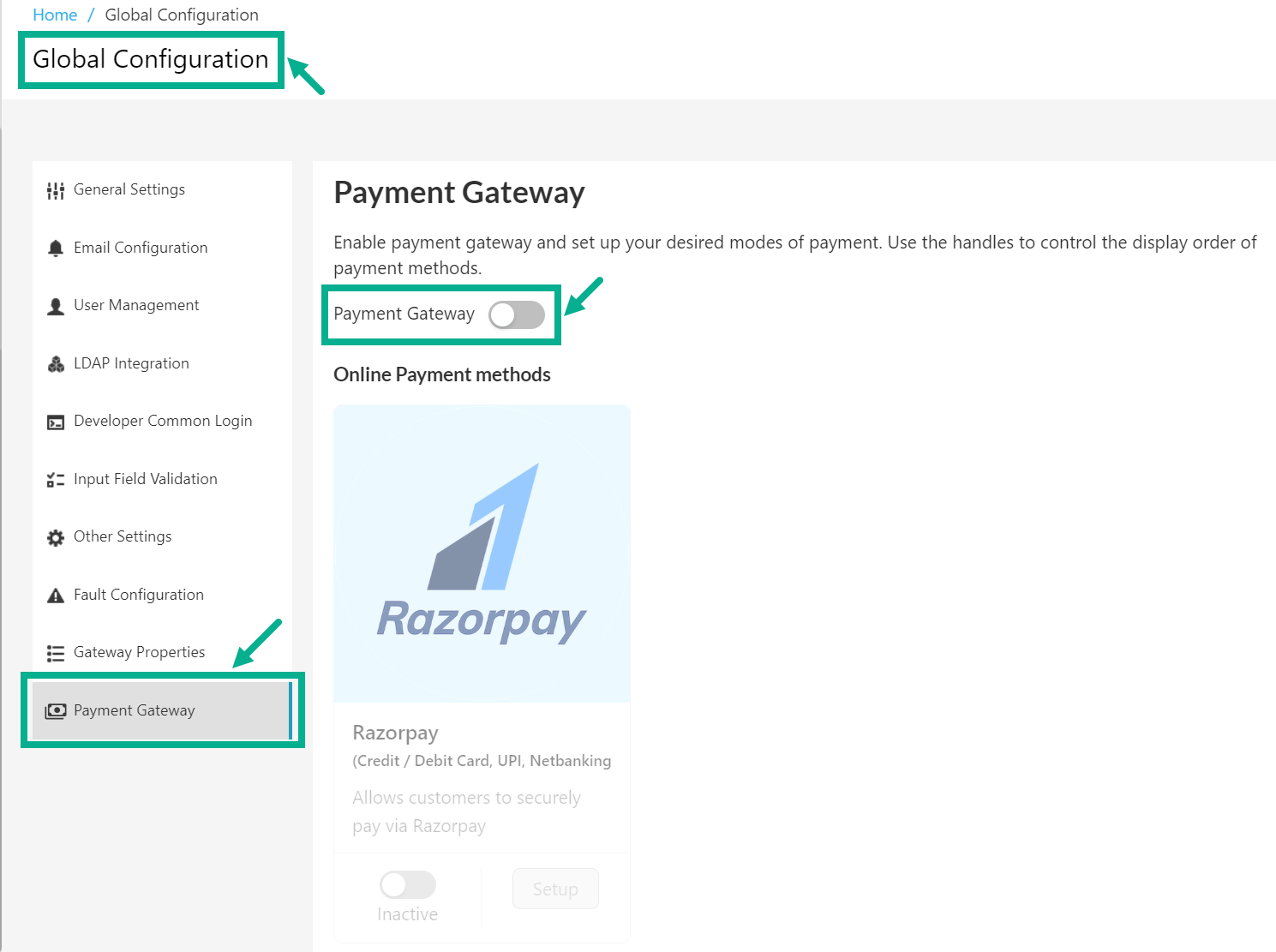

  1. Navigate to the Global Configuration module's Payment Gateway sub-module.

paymentgateway

  1. Enable the Payment Gateway toggle.
info

Online payment methods can only be configured when the Payment Gateway toggle is enabled.

paymentgateway1

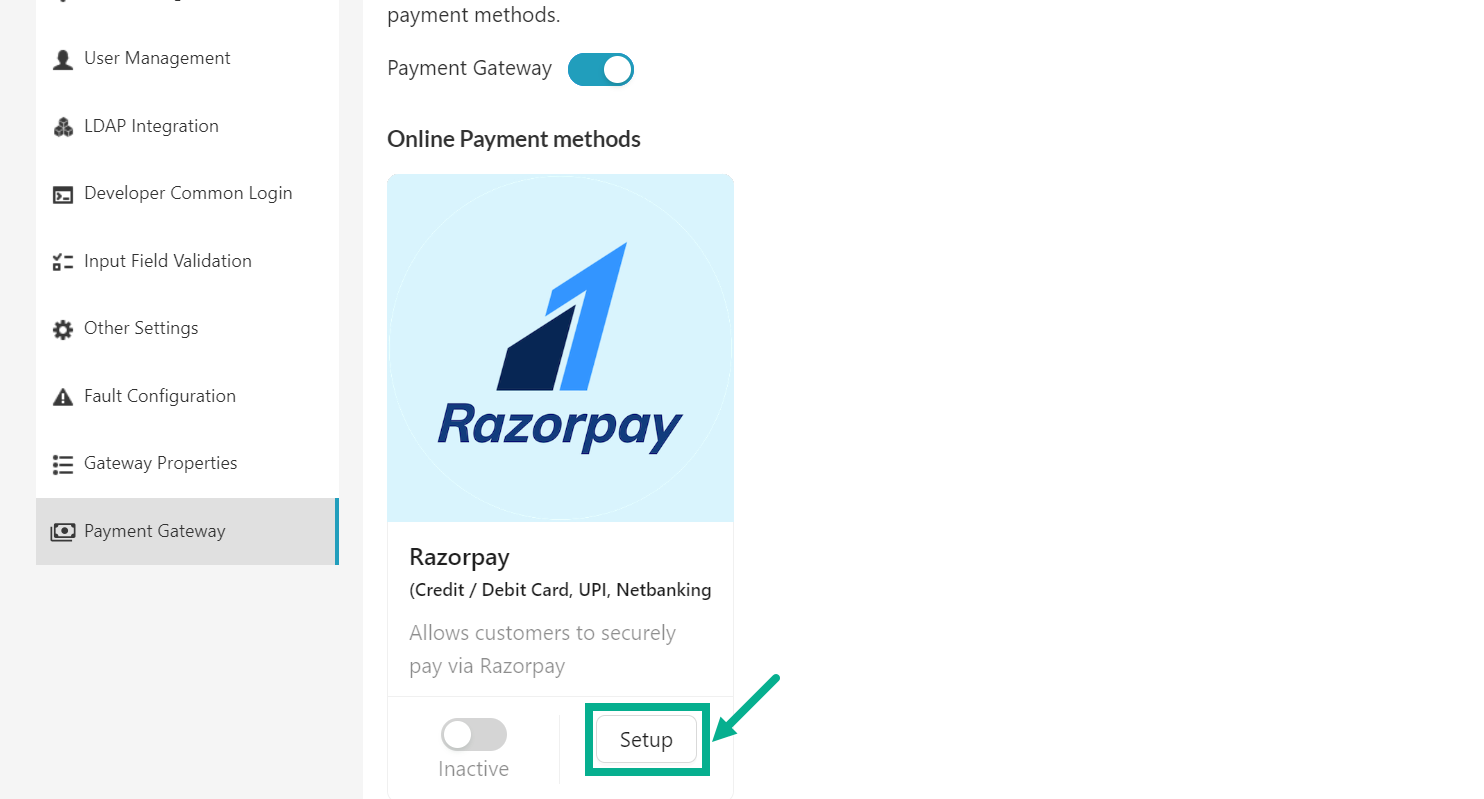

  1. Click Setup.

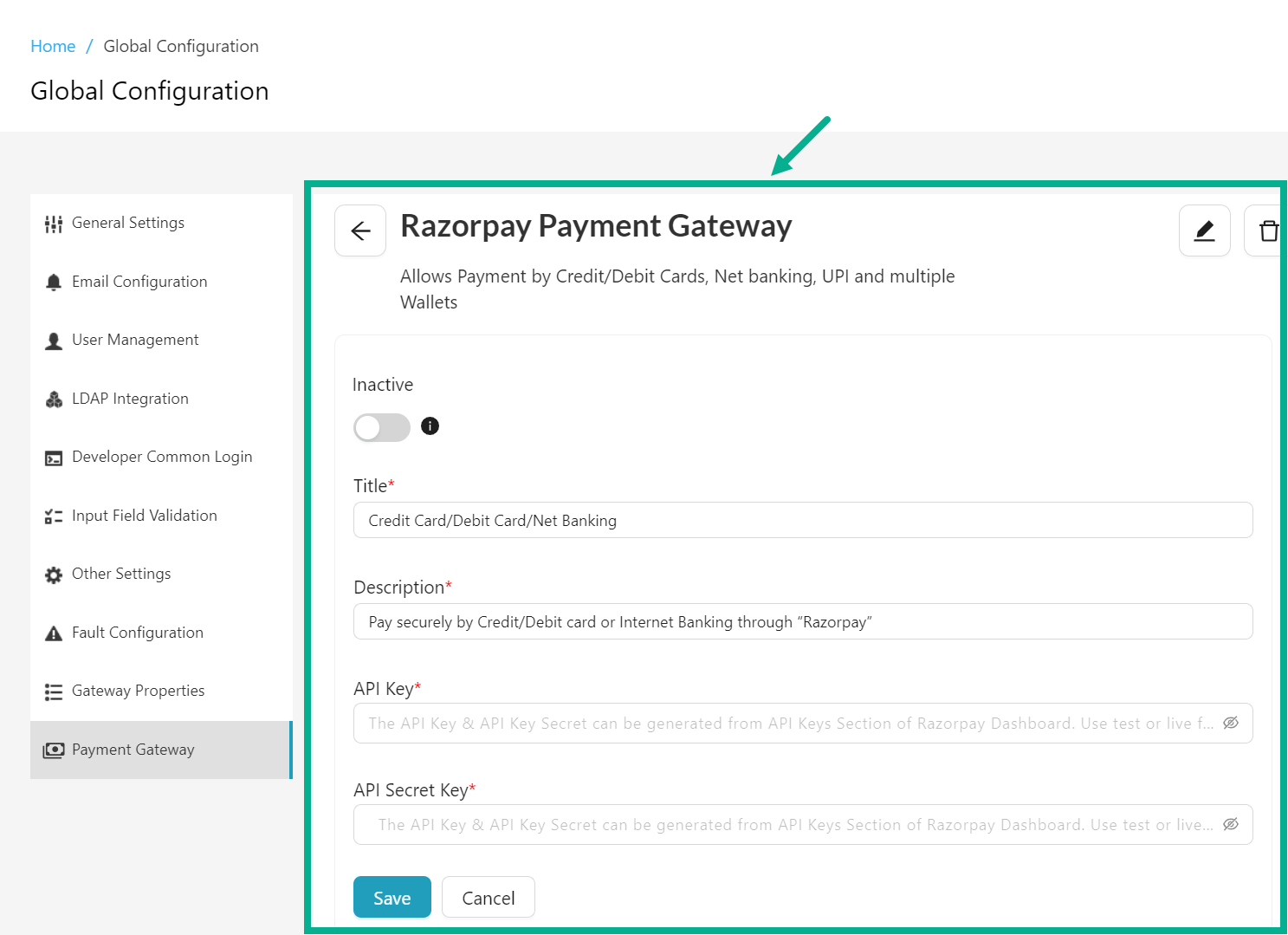

The setup screen appears as shown below.

paymentgateway2

  1. Enter the Title and Description.

  2. Enter the API Key and API Secret Key.

  3. Click Save.

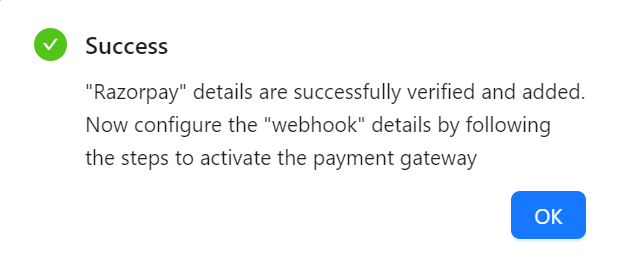

On saving, the confirmation message appears as shown below.

  1. Click OK.

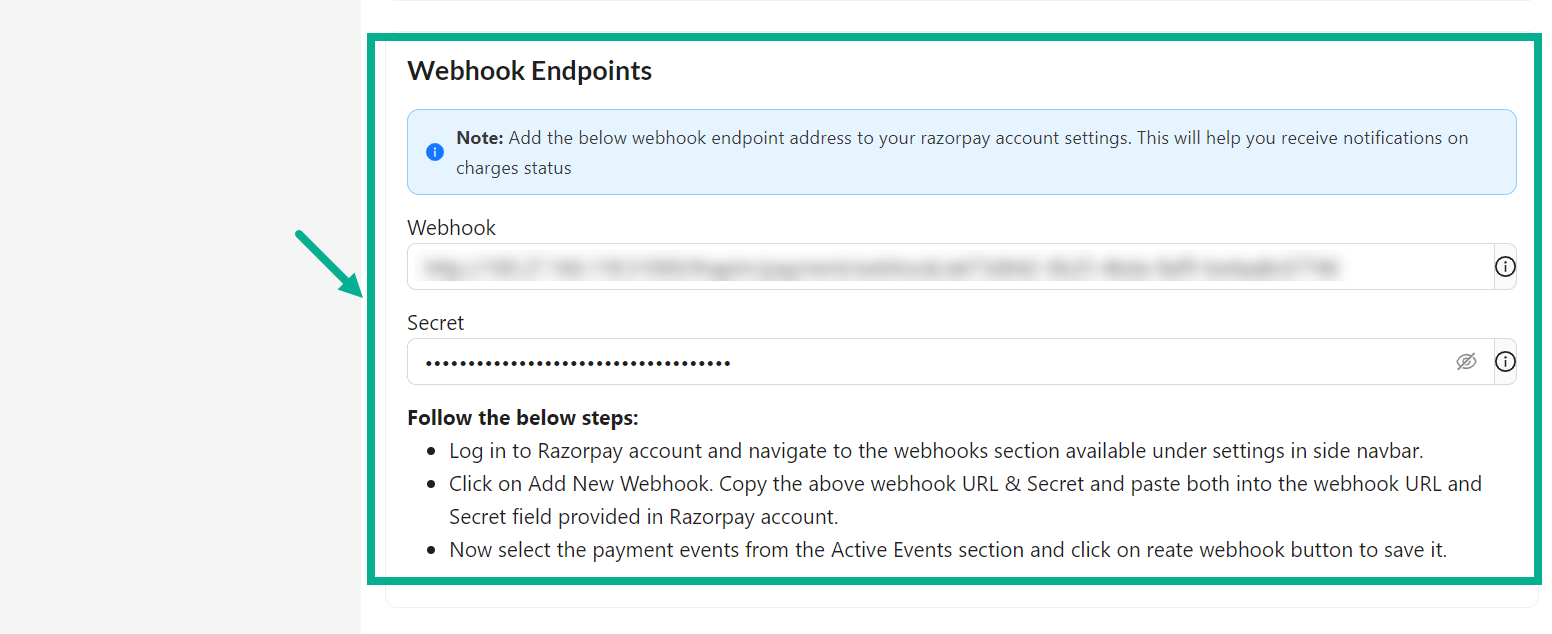

The Webhook Endpoints section appears as shown below.

paymentgateway4

caution

  • Configure the Webhook to the Razorpay account using the instructions in the image above.

  • The Payment gateway cannot be activated unless Webhook is configured to the Razorpay account.

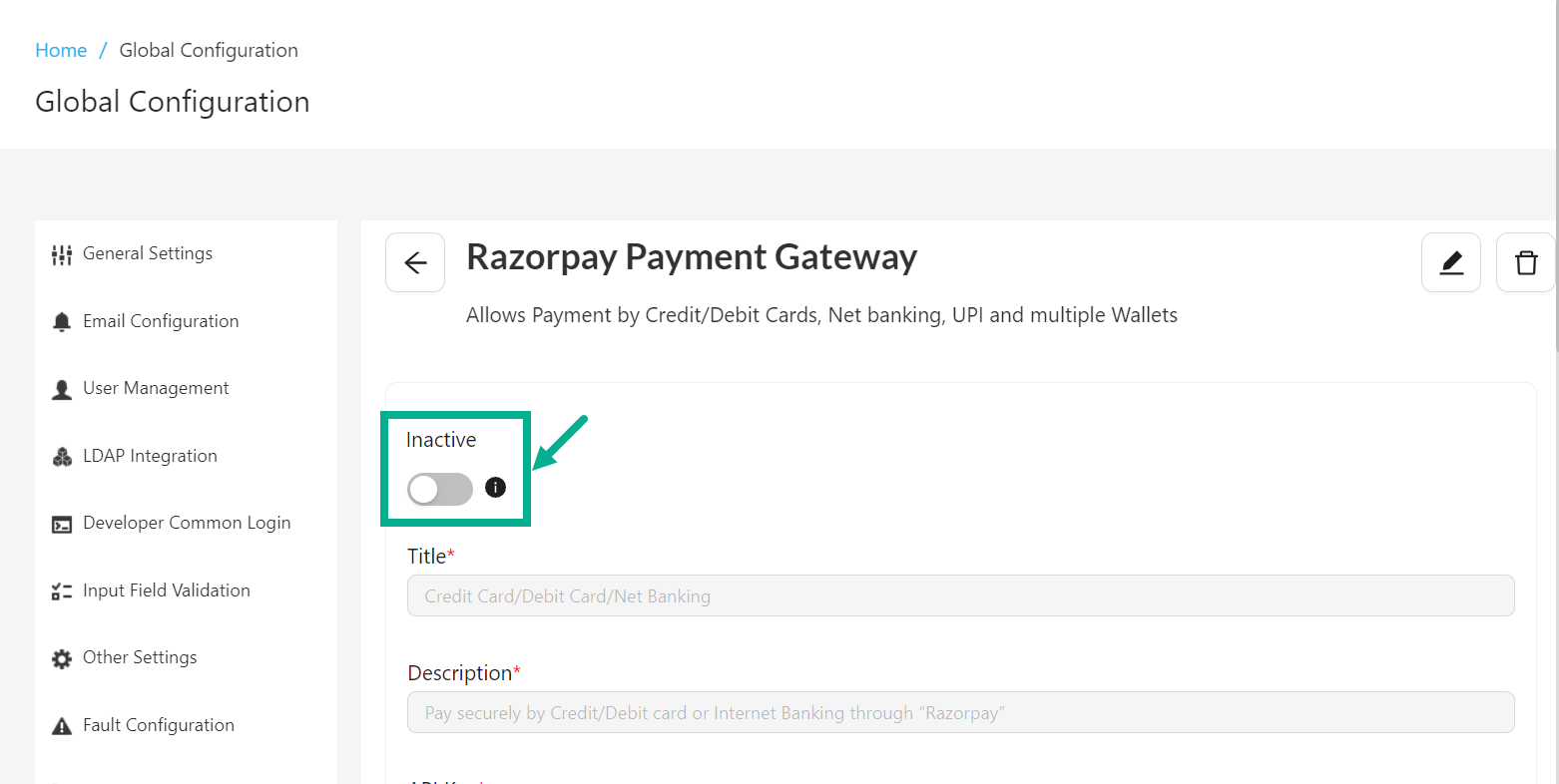

  1. After configuring the Webhook and Secret to your Razorpay account, enable the toggle to activate it.

paymentgateway5

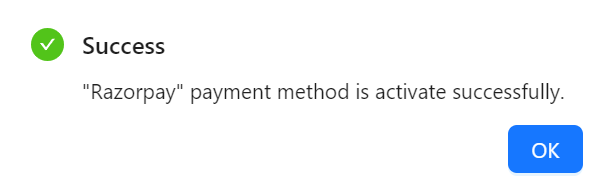

The pop-up appears as shown below.

  1. Click OK.
info

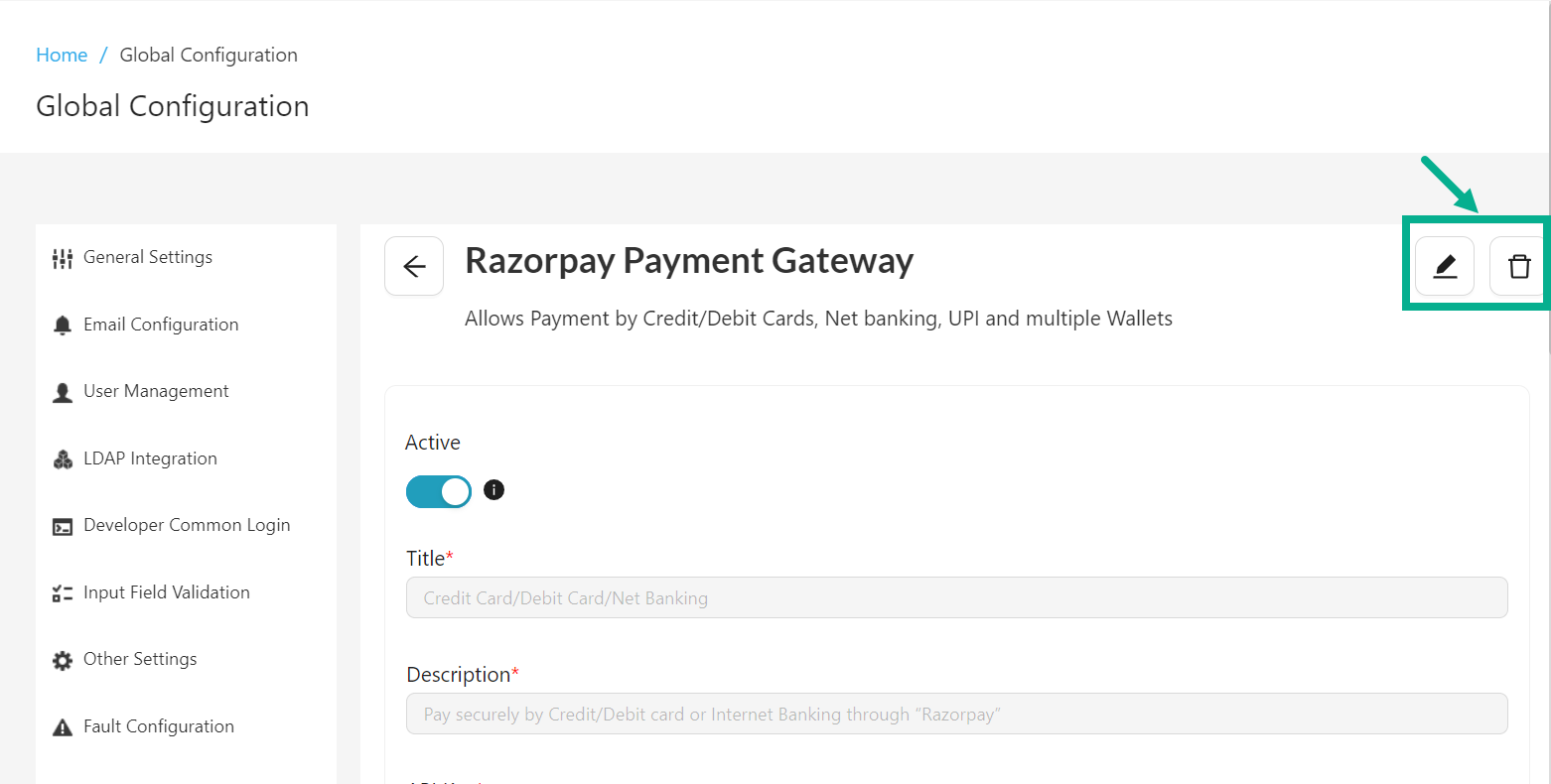

  • Click the Edit icon to modify the payment gateway details.

  • Click the Delete icon to delete the added payment gateway if necessary.

paymentgateway7
