Version: 3.8

Manage Data Recording

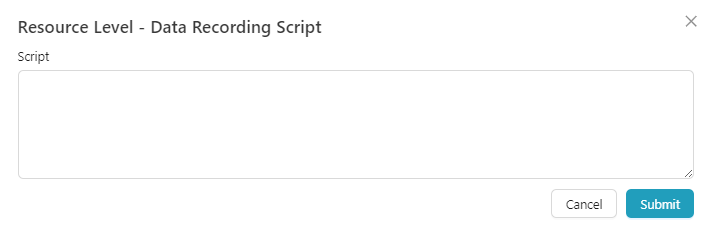

The TH API Manager allows users to create scripts based on templates to log data for each resource/operation. The script can manipulate requests and responses, including payloads and header information, by adding, removing, or hiding specific data.

Refer to the table at the conclusion of this subject for more information on data recording methods.

Data Recording Methods

The following are the masking methods used in data recording.

Method	Description
maskJsonRequestBody()	Mask JSON request body
maskJsonResponseBody()	Mask JSON response body
maskRestXmlRequestBody()	Mask REST XML request body
maskRestXmlResponseBody()	Mask REST XML response body
maskRequestBody()	Mask SOAP request body
maskResponseBody()	Mask SOAP response body

Helper Methods Used

modifyElementUsingJsonPath(jsonBody, jsonPath, replaceText).

This method is used to mask the JSON body.

Parameter	Description
jsonBody	JSON Body obtained from the code
jsonPath	JsonPath indicating the key whose value should be masked
replaceText	The replace value used to mask

partialMaskingUsingJsonPath(jsonBody, jsonPath, startLen, endLen, maskUnmask).

This method is used to partially mask JSON data.

Parameter	Description
jsonBody	JSON Body can be obtained from the code using `transactionRecording.getXmlBody()`
jsonPath	JsonPath indicating the key whose value should be masked
startLen	Number of starting characters in the jsonPath value to be masked/unmasked
endLen	Number of last characters in the jsonPath value to be masked/unmasked
maskUnmask	Indicates whether to mask or unmask the number of characters specified in the above two parameters

modifyElementUsingXPath(xmlBody, xpath, replaceText,namespace).

This method is used to mask the REST XML and SOAP body.

Parameter	Description
xmlBody	xmlBody can be obtained from the code
xpath	XPath indicating the key whose value should be masked
replaceText	The replace value used to mask
namespace	The namespaceURI if the xpath contains namespace prefix. If there is no namespace prefix in the xpath, then this field can be empty or null. If the xpath contains multiple namespace prefixes, then comma-separated namespaceURI should be given. The format for this field is - `namespace = prefix1=namespaceUri1,prefix2=namespaceUri2`

info

If no replace text is provided, the value in the x-path will be replaced with The number of stars will based on the length of the value.

partialMaskingUsingXPath(xmlBody, xpath, namespace, startLen, endLen, maskUnmask).

This method is used to mask REST XML and SOAP XML data partially.

Parameter	Description
xmlBody	xmlBody can be obtained from the code using `transactionRecording.getXmlBody()`
xpath	The path should indicate the key whose value should be masked
namespace	The namespaceURI if the xpath contains namespace prefix. If there is no namespace prefix in the xpath, then this field can be empty or null. If the xpath contains multiple namespace prefixes, then comma-separated namespaceURI should be given. The format for this field is `namespace = prefix1=namespaceUri1,prefix2=namespaceUri2`
startLen	No. of starting characters in the XPath value to be masked/unmasked
endLen	No. of last characters in the XPath value to be masked/unmasked
maskUnmask	Indicates whether to mask or unmask the no. of characters specified in the above two parameters

info

If the value of the parameter maskUnmask is mask, the characters indicated by startLen and endLen will be masked with *, while the other characters in the value will be unmasked.
If the parameter maskUnmask is set to unMask, the characters given by startLen and endLen will be unmasked, while the remaining characters will be masked with *.

Additionally, the following helper methods can be used for masking in data recording:

Method name	Method Description	Parameter	Parameter Description
modifyElementUsingJsonPath(jsonBody, jsonPath, replaceText)	This method is used to mask JSON body.	jsonBody	Json Body can be obtained from the code.
		jsonPath	The path should indicate the key whose value should be masked.
		replaceText	The replace value used to mask.
modifyElementUsingXPath(xmlBody, xpath, replaceText)	This method is used to mask REST XML body and SOAP body.	xmlBody	xmlBody can be obtained from the code.
		xpath	The path should indicate the key whose value should be masked.
		replaceText	The replace value used to mask.

info

If the xpath contains a namespace prefix, add the relevant namespaceURI to the gateway.properties file.

To add a namespace URI in the gateway.properties file, use the syntax prefix=namespaceURI.

Data Recording Sample Scripts

var obj = new Object();

//to mask json request body
obj.maskJsonRequestBody = function(transactionRecording){

     var maskedJsonBody;
     var jsonBody = transactionRecording.getXmlBody();
     var jsonPath = "$..BSOID";
     var replaceText = "XXXXXXXXXX";
     if(jsonBody  != "" && jsonPath != ""){
         maskedJsonBody = transactionRecording.modifyElementUsingJsonPath(jsonBody, jsonPath, replaceText);
         transactionRecording.setXmlBody(maskedJsonBody);
     }

     return transactionRecording;
}

//to mask json response body
obj.maskJsonResponseBody = function(transactionRecording){

     var maskedJsonBody;
     var jsonBody = transactionRecording.getXmlBody();
     var jsonPath = "$..ERROR_CODE";
     var replaceText = "XXXXXXXXXX";
     if(jsonBody  != "" && jsonPath != ""){
         maskedJsonBody = transactionRecording.modifyElementUsingJsonPath(jsonBody, jsonPath, replaceText);
         transactionRecording.setXmlBody(maskedJsonBody);
     }

     return transactionRecording;
}

//to mask soap request body
obj.maskRequestBody = function(transactionRecording){

     var maskedxmlBody;
     var xmlBody = transactionRecording.getXmlBody();
     var xpath = "//bss:Provision_Network_Response";
     var replaceText = "XXXXXXXXXX";
     if(xmlBody != "" && xpath != ""){
         maskedxmlBody = transactionRecording.modifyElementUsingXPath(xmlBody, xpath, replaceText);
         transactionRecording.setXmlBody(maskedxmlBody);
     }


     return transactionRecording;
}

//to mask soap response body
obj.maskResponseBody = function(transactionRecording){
  var maskedxmlBody;
  var xmlBody = transactionRecording.getXmlBody();
  var xpath = "//bss:ERROR_CODE";
  var replaceText = "XXXXXXXXXX";
  if(xmlBody != "" && xpath != ""){
     maskedxmlBody = transactionRecording.modifyElementUsingXPath(xmlBody, xpath, replaceText);
     transactionRecording.setXmlBody(maskedxmlBody);
  }
 return transactionRecording;
}

//to mask rest xml request body
obj.maskRestXmlRequestBody = function(transactionRecording){

     var maskedxmlBody;
     var xmlBody = transactionRecording.getXmlBody();
     var xpath = "//bsse:STATUS_CODE";
     var replaceText = "XXXXXXXXXX";
     if(xmlBody != "" && xpath != ""){
         maskedxmlBody = transactionRecording.modifyElementUsingXPath(xmlBody, xpath, replaceText);
         transactionRecording.setXmlBody(maskedxmlBody);
     }


     return transactionRecording;
}

//to mask rest xml response body
obj.maskRestXmlResponseBody = function(transactionRecording){
  var maskedxmlBody;
  var xmlBody = transactionRecording.getXmlBody();
  var xpath = "//bsse:RESULT_STATUS";
  var replaceText = "XXXXXXXXXX";
  if(xmlBody != "" && xpath != ""){
     maskedxmlBody = transactionRecording.modifyElementUsingXPath(xmlBody, xpath, replaceText);
     transactionRecording.setXmlBody(maskedxmlBody);
  }
 return transactionRecording;
}
